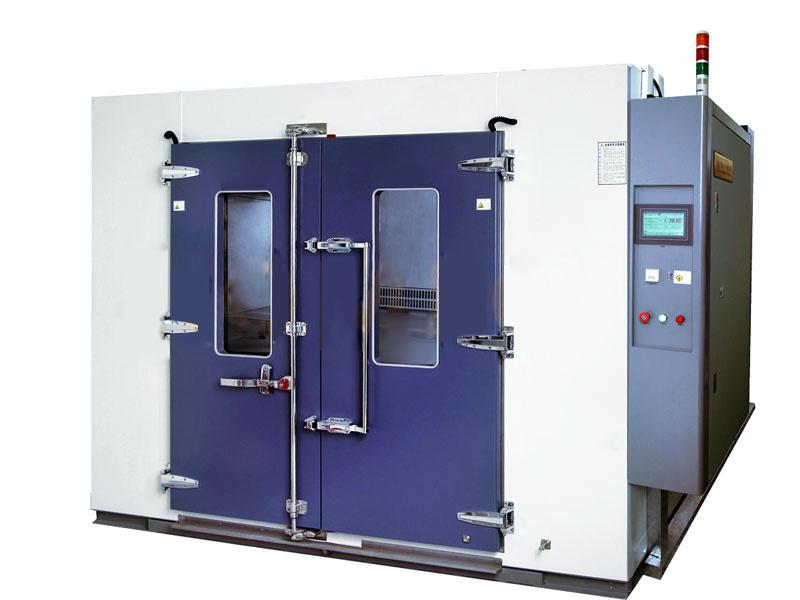

Walk-In Chamber

Standards:

Specification:

Our Walk-in Chamber use urethane-foam panels in a stainless steel or galvanized interior skin. This Walk-in Chamber is same construction used for walk-in coolers in restaurants, but of a higher quality.

Applications

Walk in test Chamber are used for various types of testing such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.

Features

Walk-in, Drive-in Type

Stainless steel interior (or galvanized for savings)

Painted galvanized steel exterior for long life

MAP service doors are hinged (no tools or lifting)

Easy access to components

Reliable steam generator system for humidity applications

Sheathed electric heaters for safety and reliability

Adjustable vanes in supply grille allow directing of airflow as needed



Standards Implemented and met

GB-2423. 1-89(IEC68-2-1) Test A: Low Temperature Test

GB-2423. 2-89(IEC68-2-2) Test B: High Temperature Test

GJB360. 8-87(MIL-STD202F) High Temperature Operating Life Test

GBJl50. 3(MIL-STD-810D) High Temperature Test

GJBl50. 4(MIL-STD-810D) Low Temperature Test

GB2423. 3-93(IEC68-2-3) Test Ca: method for steady-state damp heat test

GB2423. 4-93(IEC68-2—30) Test Db: Damp Heat Alternative Test

GJBl50. 9-93(MIL-STD-810D) Damp Heat Test



Specifications

High quality and reliability performance;

Controller:Touch screen, parameter and program control;

Competitive price and 12 months free parts warranty.



Model

4

6

8

13

17

21

Interrior material (cm)

W

210

300

390

300

390

480

H

210

210

210

210

210

210

D

205

205

205

430

430

430

Volume(M3)

9

12.9

16.8

16.8

35.2

13.3

Exterrior dimensions

W

325

416

505

505

505

595

H

235

235

235

235

235

235

D

225

225

225

225

450

450

System

Balanced & Humidity Control Systerm

Temp. range

Maximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºC

Humidity Range

10%,20%,30%~95%

Temp. constancy

±0.5ºC

Humidity constancy

±2.5%R.H

Temp. uniformity

±2.0ºC

Humidity uniformity

±5.0%R.H

Heat up time

+20ºC~+80ºC ,Within 60 min

Pull down time

+20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60 or 45 min

Interior material

Stainless Steel Plate(SUS 304)

Exterior material

Baked Painting Steel Or Stainless steel(SUS304)

Insulation material

Rigid polyurethane foam

Door size (mm)

Single wing:W800*H1800;Double wing:W1600*H1800

Refrigeration system

Semi-hermetic compressor, single stage or cascade refrigeration system,CFC free refrigerant(HFC-507 and HFC-23)

Controllor

Touch controller, Chinese menu, Operation mode: setting/program

Safety Devices

No fuse breaker, over pressureover heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection

Standard accessories

Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator

Ambient Temp.

+5ºC~+35ºC

Power

AC 380±10%50Hz ,3 phase 4 wires +Ground Wires

Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available
