ZI 10010
Standards:
Specification:
Applications:
The Revolution of Electrical Imaging (ERT)
Till this moment the use of Electrical Resistivity Tomography (ERT) for geology has always been basically the same since its debut, based on the original vertical Electrical Soundings (VES) principles: applying a continuous current to two stakes inserted into the ground and measuring the corresponding voltage between other two. The applied current and thus the relative tension have always been continuous, with an inversion in polarity for each measure. The new tool POLARES uses an alternate current, instead, sinusoidal type, with an adjustable frequency.
Advantages of the new POLARES system
Considering the higher complexity of the device, the alternating current stimulation has shown particular advantages with regard to the faster implementation of the measures with the same quality of results. This higher speed can reduce the time required to perform a set of field measurements by a factor of at least 10 (or 20 in most cases!) in respect to traditional system. Moreover, the measure of the relationship between the detected voltage and the injected current, in sinusoidal state, both as form and as a phase (delay of a signal over the other), these two pieces of information, with only one measure, allow the simultaneous detection of the resistivity and the induced polarization of the ground.

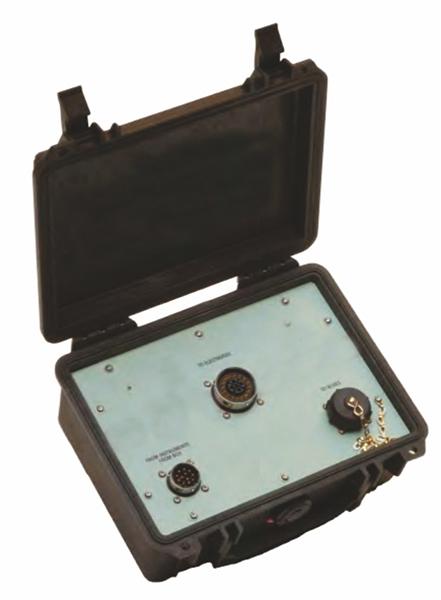

POLARES Benefits: The proposed new instrument brings together into a single small and lightweight case the management and control system and the power section, the only external part is the signal switching system, so to offer the a great flexibility.
Available configurations: from 16 to 256 electrodes.
Compared to the previous generations, the new electrical imaging system POLARES is lighter, smaller, faster and more reliable. The user interface is built with a high brightness LCD monitor with touch screen, all operations are made without using either the mouse or keyboard. The use of an embedded ultra low power PC combined with the lack of fans and traditional HD, correlate with the using of an open source operating system (Linux), provides a far superior battery life and overall reliability improved. The only interface to the outside is a USB port to which you can connect a number of different devices such as pen drives for data storage, network interfaces, WiFi, Bluetooth, GPS antennas, keypads, and more. Another advantage of not using a traditional PC is the wider range of working temperature and humidity that makes POLARES the best solution even in marsh environmental conditions.
TECHNICAL SPECIFICATIONS:
