Well Camera - 2

Taking advantage of a great experience in designing and manufacturing TV systems for borehole and well applications, PASI created the innovative WELL-CAMERA; this compact and lightweight tool is the answer to everybody who are looking for an easy to use, reliable an affordable tool for quick in-field video inspections.

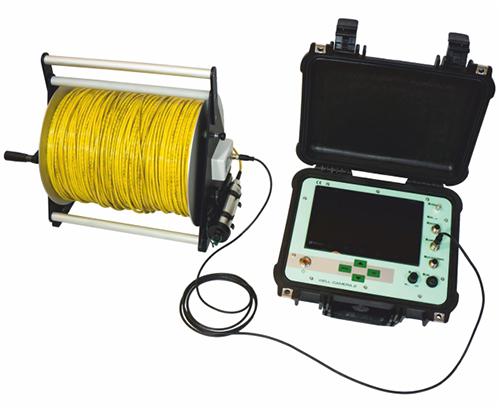

A complete WELL-CAMERA.2 system consists of:

• Reel and camera head
• Control unit with integrated LCD, USB 2.0 grabber board and microphone
• Encoder (optional accessory)
• Battery charger

Main Technical Features

• Internal 12V rechargeable battery / external 12V battery connecting cable
• Camera head waterproof up to 35 bar (approx. 350m of freshwater column)
• Wide angle lens 120° - available 90° view option
• Integrated monitor 9" TFT LCD
• 8x high intensity LED, with regulation knob
• Integrated audio/video grabber board USB2 for recording on external PC
• Available lengths: 50m, 100m, 200m, 3000m, 400m, 500m.
