Grain Size Analysis (Pipette Method)

ZI 3009

Standards:IS 2720 (PART IV) AND BS 1377:2.

Specification:

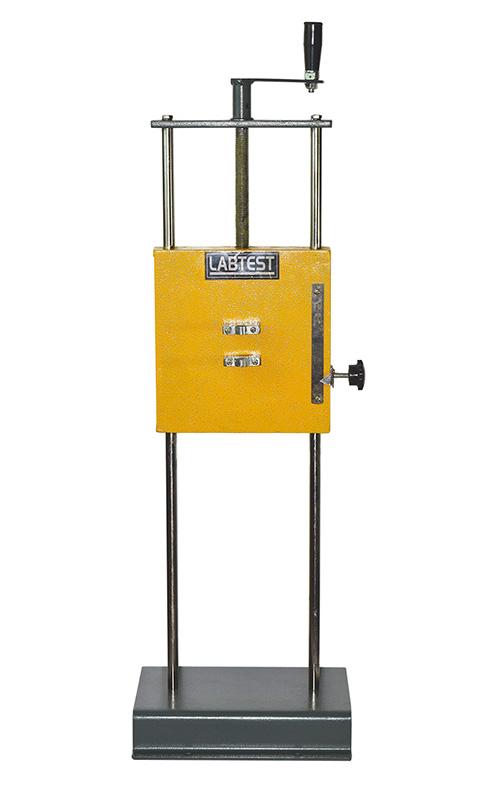

This is for the determination of the sub sieve particle distribution in a soil sample by mechanical analysis. An analysis of this kind expresses quantity the proportions by weight of the various sizes of particles present in the soil. It is recommended as a standard procedure to use dispersion agent to avoid flocculation. The apparatus consists of a sliding panel which moves up and
down by means of a screw allowing Anderson pipette fixed to it to be raised or lowered vertically. A sedimentation tube is held by a laboratory clamp provided on the stand below the pipette. The depth of immersion is measured by a scale graduated in mm at the side of the sliding panel. Supplied complete with Anderson pipette 10ml. At the side capacity made from glass, and a sedimentation tube also of glass of 500ml capacity and 50nos. Test form pads.

Accessories & Spares: (on extra cost)

  1.  Sedimentation Pipette (Anderson pipette) 25ml.
  2.  Sedimentation tube 100ml
  3.  Sedimentation pipette 10ml
  4.  Sedimentation tube 500ml
  5.  Test forms pad of 50
