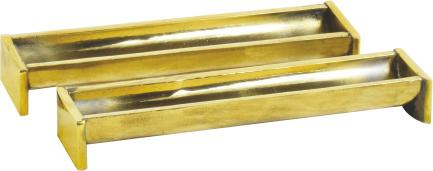

Linear Shrinkage Mould

ZI 3003

Standards:BS 1377-2

Specification:

A simple mould which is filled with the soil under test. This is then dried and the resulting decrease os length of the specimen measured is expressed as the linear shrinkage. It is 25mm Dia. x 12.5mm Height x 140mm Length
