Fully Automatic Compression Testing Machine

ZI 2060

Standards:EN 12390-3, EN 12390-5, EN 12390-6, En 1338, EN 1340, EN 196


General Properties:
The automatic range of 3000 kn capacity compressiontesting machines has been designed to meet the need for reliable and consistent testing of concrete samples.all labtest machines feature the complete automatic test cycle with a closed loop digital readout. Once the specimen parameters have been introduced, it is sufficient to press the start button to complete the test. Labtest compression machines consist of their main parts: frame, power pack and data acquisition & control system. Each part has been designed to manufacture
machines with a high degree of mechanical stability.

Salient Features:

  •  Automatic test cycle with standard rapid approach
  •  Graphical - LCD data acquisition and control system
  •  Menu driven software for easy operation
  •  Load vs time plot and instantaneous load rate displayed
  •  Accurate load rate control within ±5 from 1 kN/sec to 20 kN /sec
  •  Class 1 starting from % 10 of the full range
  •  SI, Metric, Imperial units
  •  Data storage up to 256 tests
  •  RS 232 output for printer or PC
  •  Free of charge PC software for test control and advanced report printout

The load frame is a welded steel fabrication carrying the ball-seated upper platen. Positively located on the loading ram which is protected from debris by a cover, the lower platen is marked for the centering of cube and cylinder specimens. The dimensions of the frame allow the testing of concrete cylinders up to 320 mm long x 160 mm diameter; 100, 150 mm cubes. All machines are supplied complete with 30 mm, 50mm and 90 mm distance pieces. To test samples shorter than 150 mm extra distance pieces should be ordered. All machines are supplied with flexi glass front and rear removable safety doors. All frames have a single acting upstroking ram with over travel protection to stop the motor when the maximum platen travel be reached.
The Main Characteristics Are:

  •  High stability welded assembly
  •  50 mm piston stroke with safety limit switch
  •  Platen hardness of min 55 HRC
  •  Distance pieces and safety door included
  •  Ball seating assembly and frame tested for stability

Data Acquisition And Control System:
Lcd graphics data acquisition and controls system is designed to control the machine and processing of data from load cells or pressure transducers installed on the compression machine frame. The easy to read lcd graphic display and touch-button data pad keys make the unit quick and straight forward to operate. All interactions with the measuring system are via the front control panel by using simple menu-driven procedures. The bc100 is contained in light alloy housing and its design satisfies the ergonomic requirements for various use. The bc100 digital graphic display allows real time load vs time graph. At the end of the test cycle, the results can be stored in the large memory or downloaded to a
PC in Labtest software format. Dedicated software package is available for further online data processing, database management and certificate printing.

The Main Characteristics are:

  •  High resolution 65.000 points
  •  240 x 120 pixel blue-white graphic lcd display
  •  Standalone full automatic testing capacity
  •  CPU card by microprocessor 32 bit arm risk architecture
  •  Can make manual tests if required
  •  Large permanent memory up to 256 test results
  •  Rs232c (optional ethernet) connection at 57600 band
  •  One RS232 serial port for connecting either PC or printer for data transmission
  •  Two analogical channels, use for load cell or pressure transduce
  •  A sample type and dimensions can be entered respect to the standard
  •  18 key touch membrane keyboard
  •  Easy to operate with 6 main function keys
  •  Language select: English
  •  Can control two frames (Compression & Flexural)

Power Pack:
Dual stage power pack which is controlled by is designed to supply required oil to the frames. Very silent Power pack can load a specimen between 1 kn/ sec to 20 kN/sec. On the dual stage pump high delivery low pressure pump is used for rapid approach and low delivery high pressure radial piston pump is used for test execution. On all power packs maximum pressure valve is used to avoid machine overloading.

The Main Characteristics are:

  •  Dual stage pump
  •  750 W power
  •  25 liter oil capacity
  •  60-100 mm/min fast approach speed

Safety Features:
All Labtest compression machines are fitted with:

  •  Max pressure valve to avoid machine overloading
  •  Ram travel switch to prevent excessive piston travel
  •  Front and rear gates with transparent durable flexiglass
  •  Emergency stop button
  •  Software controlled maximum load value

Technical Specifications:

Model ZI 2060A ZI 2060B
Capacity 2000kN 3000 kN
Standard EN EN
The roughness value for texture of loading and auxiliary platens ≤ 3.2 µm ≤ 3.2 µm
Lower platens dimensions (dia.) 300 mm 300 mm
Upper platens dimensions (dia.) 300 mm 300 mm
Maximum vertical clearance between platens 340 mm 340 mm
Piston diameter 250 mm 300 mm
Maximum piston movement 50 mm 50 mm
Horizontal clearance 360 mm 425 mm
Power 750 W 750 W
Oil capacity 20 L 20 L
Maximum working pressure 410 Bar 410 Bar
Dimensions (W x L x H) (mm) 810x500x970 810x500x970
Weight 795 kg 1095 kg











Fully Automatic CTM can be used to perform various compression and strength tests in a laboratory. It can also be used to test Concrete Cube Moulds, Beam Moulds and Cylinderical Moulds.

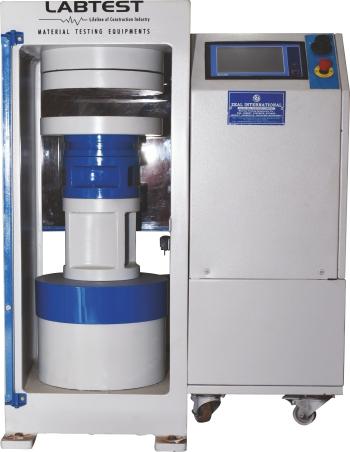

Fully Automatic Compression Testing Machine
Pumping Unit / Control Unit of Compression Testing Machine
