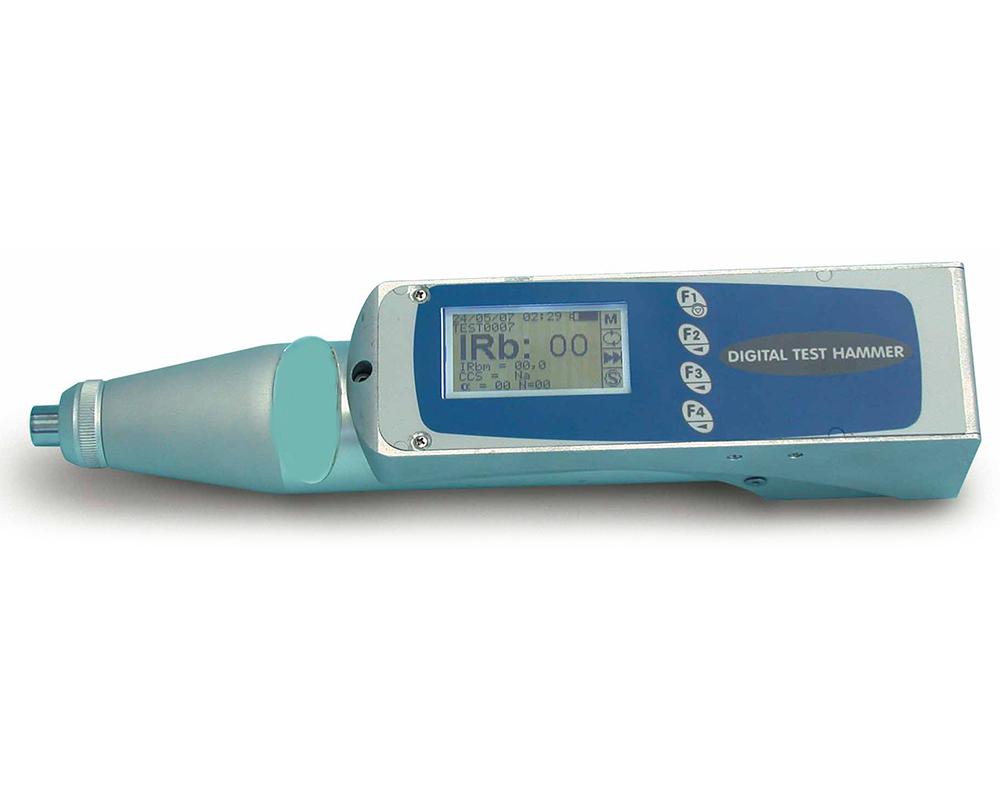

Digital Concrete Test Hammer with Microprocessor

ZI 2069

Standards:EN 12504 PART 2 ASTM C805 BS 1881:202 NF P18-417 DIN 1048 UNI 9189

Specification:

This digital concrete test hammer, microprocessor operated, performs basic concrete testing with continuous automatic recording of all parameters in accordance with EN 12504-2 Specifications, register and process data and then transfer them to a PC The unit is equipped with an electronic transducer that measures the rebound values and supplies automatically the results on a graphic display.

During test performing:

Shows index value
Shows average index value
Allows to select measuring system in MpA or Psi
Shows numbers of performed rebounds
Shows date and time
Identifies tested element
Identifies automatically and shows rebound angle
Shows battery life

Main features:

Possibility to store, display on graphic LCD 64x124 and download data to PC over 20000 tests
Automatic statistical processing and readings
Automatic conversion of rebound index to equivalent compression strength in psi, N/mm2, kg/cm2
High accuracy and resolution

Dimensions with case: 330x180x120 mm
Weight: 3 kg

Digital concrete test hammer with microprocessor
