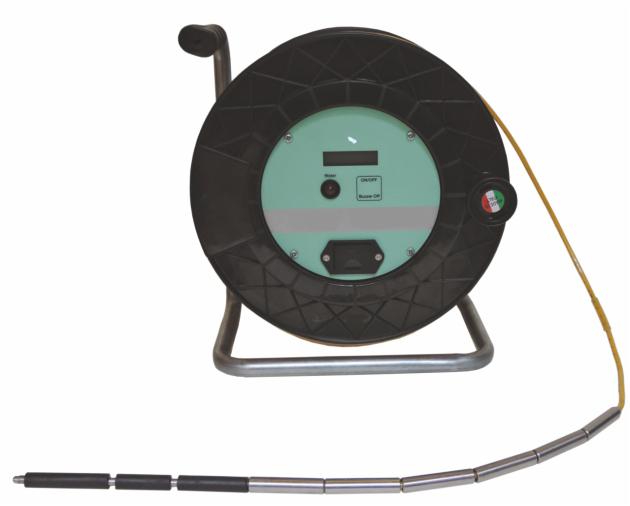

Water Level Meter WMS-02

ZI 10016

Standards:

Specification:

Water level indicator with temperature display; PVC rounded cable, four-conductors, with kevlar core and external protection sheath

Cable length available: 30m, 50m, 100m, 150m, 200m, 300m, 400m, 500m.
Cable diameter: 4.7mm
Graduation at 1 cm intervals (directly printed on the cable itself and protected by external anti-scratching transparent polihuretane)
Probe diameter: 10 mm
Probe material: stainless steel

  • PT100 temperature sensor (accuracy +/- 0.1°C, range da -10 a +70 °C)
  • Water level indication by both acoustic signal (buzzer) and LED
  • Temperature display
  • Cable reel in antishock PVC, with brake, probe support, painted iron frame
  • Power supply through 9V battery (externally replaceable)
