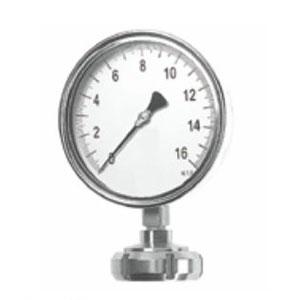

JPI 12013
Standards:
Specification:
| Dial size | 100 & 150 mm |
| Accuracy | +_ 1.5 % of range span |
| Sensing Element | Spring Steel/stainless steel Diaphragm |
| Diaphragm | |
| Protection | Teflon,silveer foil (for Chlorine) Stainless Steel |
| Movement | Non ferrous/Stainless Steel |
| Tob Chamber | Cast Aluminum /cast Iron |
| Bottom Chamber | cast Iron.SS 304/316 AiSi |
| Case | Cast Aluminum /cast Iron,weatherproof stove enamelled black with screwed bezel. |
| Connection | 1/2 " BSP (m) |
| Mounting | Direct With bottom/back entry. |
| Range |
1,2,4,7,10,14,16,21,25,kg./cm -760 mmhg & compond -1 + 25 kg/cm2 -760 mmhg & Compound -1+25 kg/cm |
| Capsule | (low Pressure range) :100,250,400,600,1000,1600,2000,2500,2000,6000 mmwc. |
