JPI 5003
Standards:
Specification:
Hand lever wlves
| Pipe size | 1/4",3/8", and 1/2 BSP |
| No of ways | 3 and 4 way |
| Actuation | Hand lever |
| Return Mechanism | Spring,push pull |
| Pressure range | 0-10 kg/cm |
| Spool type | 2 and 3 positions with or without detent |
| Valve Body | Aluminum |
| Ruber parts | Nitrile (Buna-N) Elastomer |

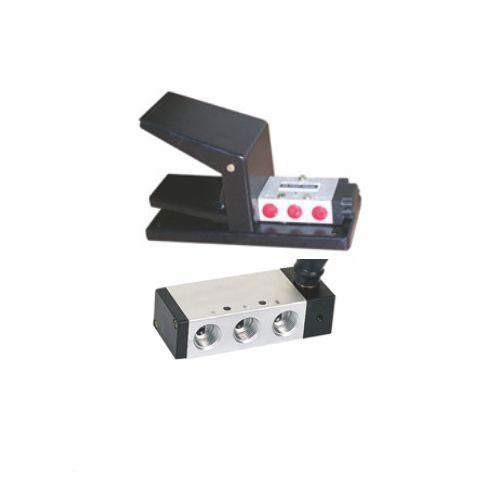

Foot operated Valves
| pipe size | 1/4",3/8", and 1/2 BSP |
| Media | Air |
| No of ways | 3 and 4 way |
| Actuation | Foot pedal |
| Return Mechanism | Spring |
| Pressure range | 0-10 kg/cm |
| Spool type | 2 position spring return |
| Valve Body | Aluminum |
| Ruber parts | Nitrile (Buna-N) Elastomer |
