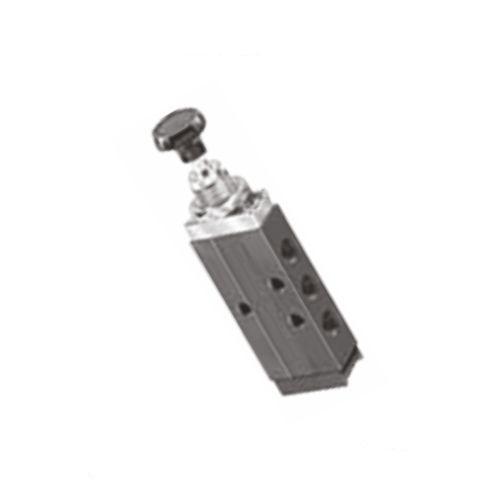

JPI 5005
Standards:
Specification:
| pipe size | 1/4",3/8,and 1/2, BSP |
| Media | Air |
| No of ways | 3 and 4 way |
| Actuation | palm button |
| Return mechanism | spring,push-pull |
| pressure range | 0-10 kg/cm |
| spool type | 2 & 3 positions with or without detent |
| valve body | Aluminium |
| Rubber parts | Nitrile (Buna-N) ) Elastomer |
